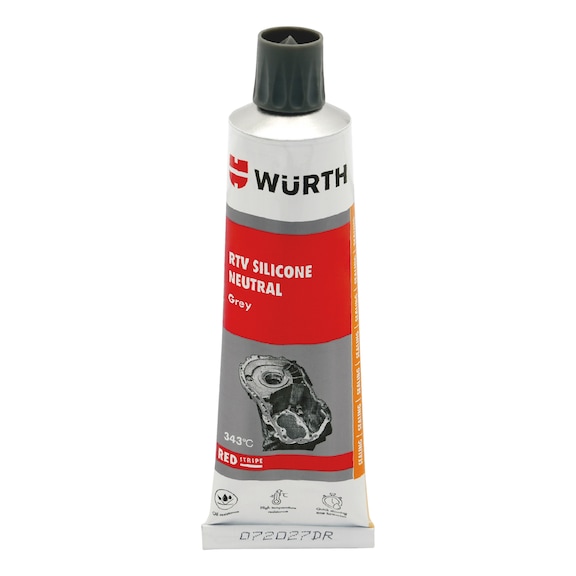

Engine sealing compound neutral RTV

For assembly as a form-in-place gasket

• 1. Remove all previous material from mating surfaces.


• 2. For best results, clean and dry all surfaces.


• 3. Cut nozzle to desired bead size, 1/16“to 1/4“in diameter. A 1/8” bead is usually sufficient for most applications.


• 4. Remove cap, puncture tube or cartridge seal and attach extension nozzle.


• 5. Apply a continuous and even bead of silicone to one surface, first tracing the internal areas of the gasket configuration, then all surrounding bolt holes.


• 6. Assemble parts immediately while silicone is still wet. Secure or tighten to recommended torque specs.


• 7. Re-torque will not be necessary after the product has cured.

For assembly as a gasket dressing

• 1. Repeat steps 1 through 4 as in previous section.


• 2. Apply a thin film of silicone to one surface to be sealed.


• 3. Place the pre-cut gasket onto silicone film.


• 4. Apply a second thin film to pre-cut gasket surface.


• 5. Remove any excess and assemble parts immediately.

For Clean up

• 1. Remove uncured product from parts and hand-tools with suitable Wipes. If skinned over, break film with a dry cloth to remove as much as possible.


• 2. Clean hands with a dry cloth or Wipes.
